Style: |

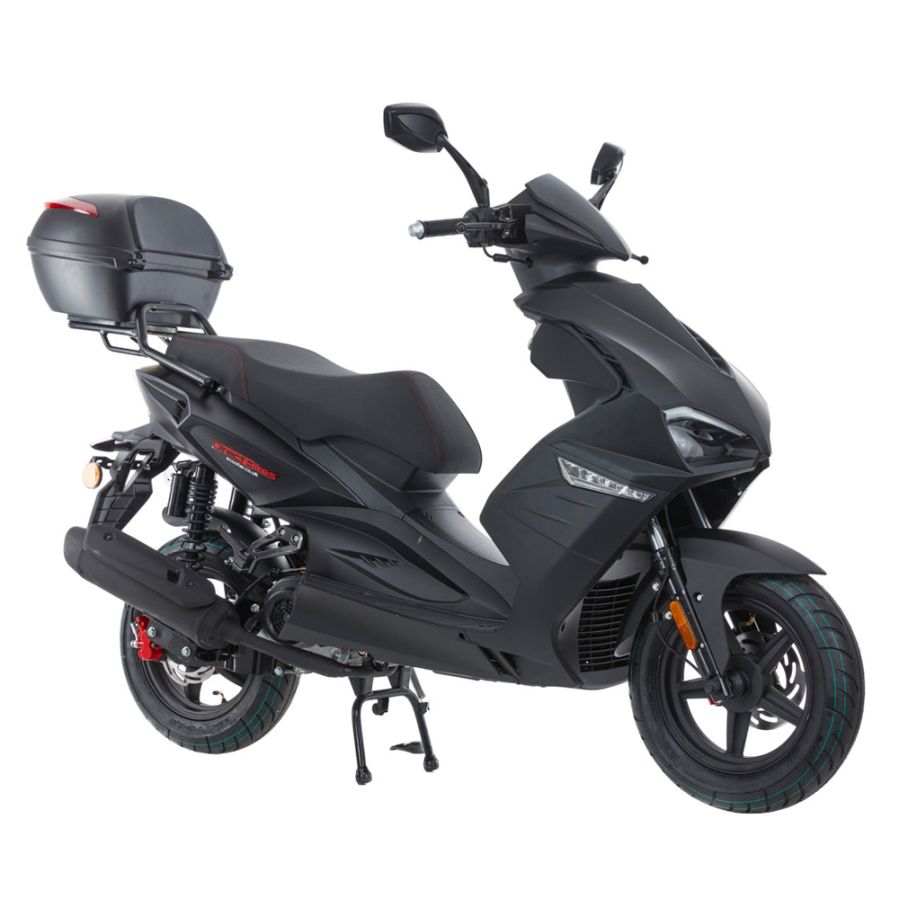

50cc Ninja Scooter |
Model: |
Direct Bikes |
Overall Length(mm) |
1830mm |
Overall Width(mm): |
680mm |
Overall Height(mm): |
1140mm |
Seat Height(mm): |
715mm |
WheelBase(mm): |
1290mm |
Ground Clearance(mm): |
140mm |
Dry Weight(kg) |
89kgs |
Max. Load Mass(kg): |
150kgs |
Max. Speed(mph): |
30mph |
Tyre: |
Front: 90/90-12
Rear: 90/90-12 |
Driving Mode: |
C.V.T |
Brake Mode: |
Front: DISC
Rear: DRUM |
Brake Operation Mode: |
Front: By Hand
Rear: By Hand |
Engine: |
DB139QMB |
Engine Type: |
Single Cylinder Four Stroke |
Cylinder Type: |
Horizontal |
Bore X Stroke(mm): |
Dia.39 X 41.5(mm) |
Piston Displacement: |
49.5cc |
Compression Ratio: |
10.5:1 |
Max. Torque(N.M/rpm): |
3.0/6000(N.M/rpm) |
Lubrication: |
Compress & Splash Combined Type |
Max. Output Power(kw/rpm): |
2.3/8000(kw/rpm) |
Ignition: |
C.D.I |
Started System: |
Electric Starter/Kick Starter |
Engine Cooling: |
Forced Air Cooling |
Transmission: |
Stageless Transmission |
Clutch: |
Dry Multi-Disc Type |
Battery: |
12V-4AH |
Fuel Capacity: |
5.4L |
Air Pressure of Tires: |
Front 200kpa; Rear 225kpa |
